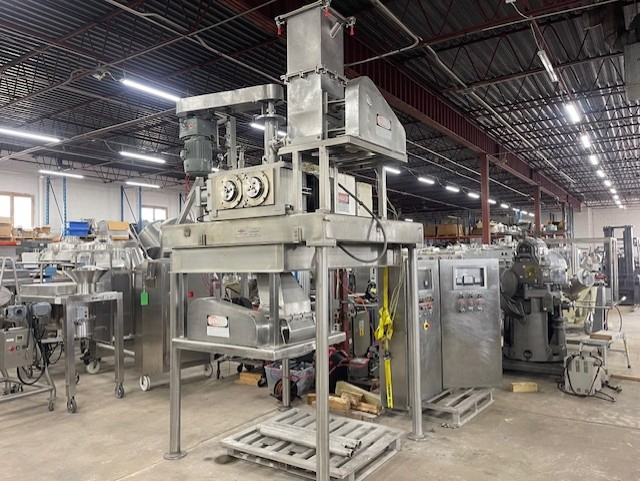

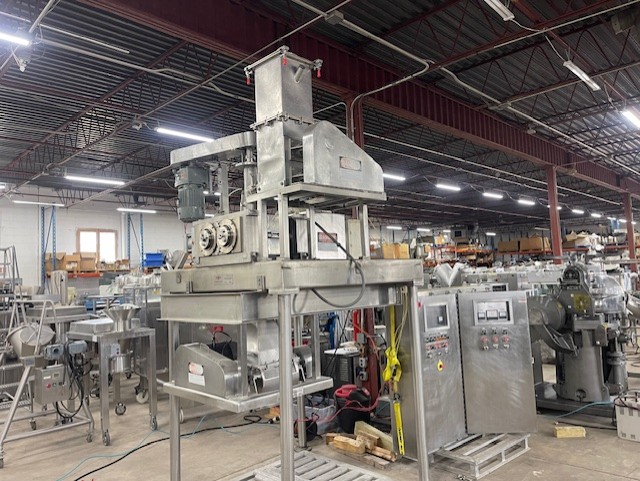

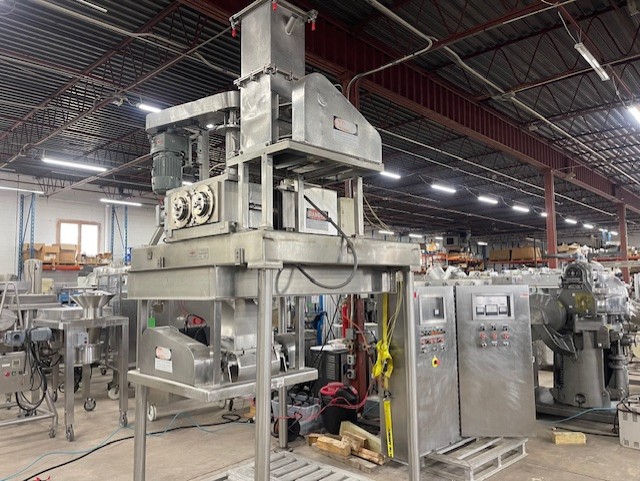

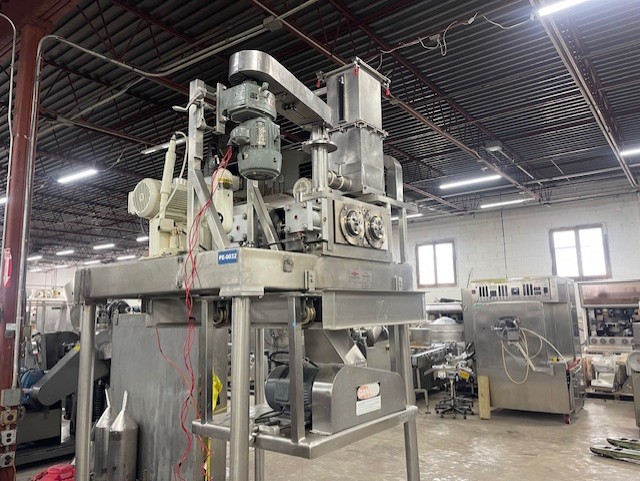

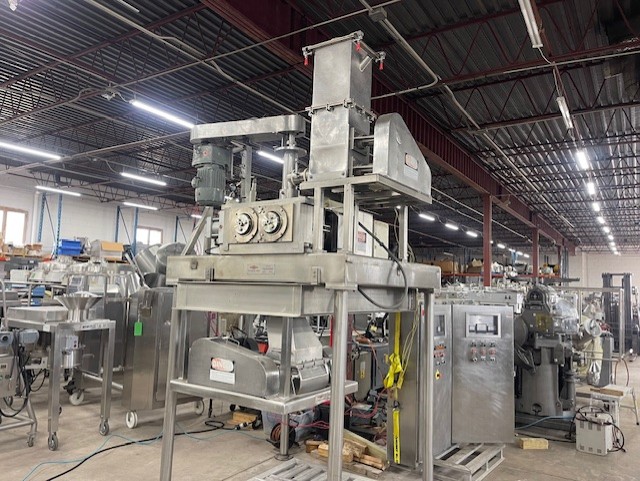

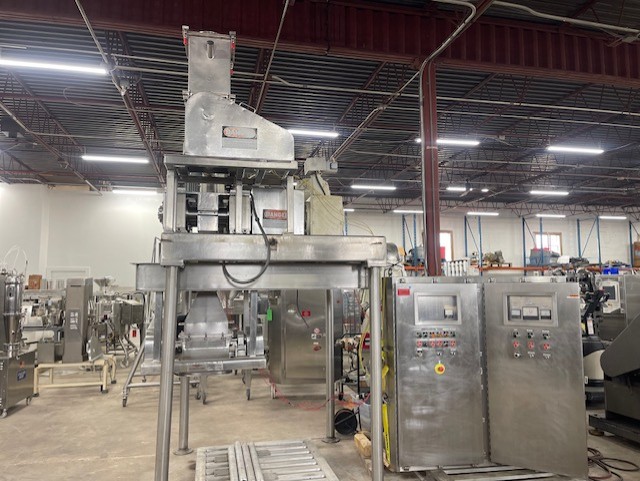

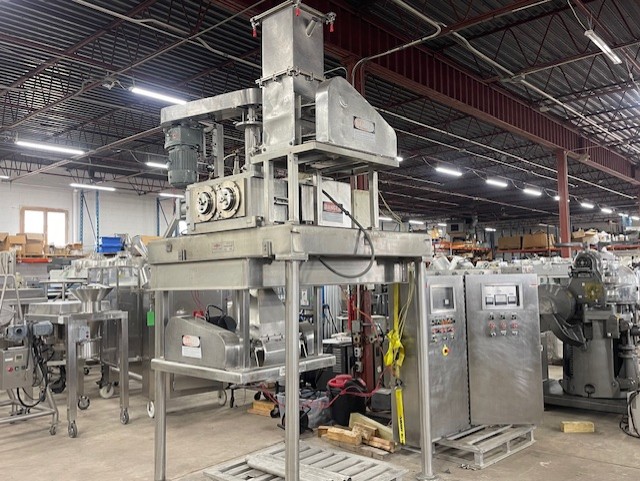

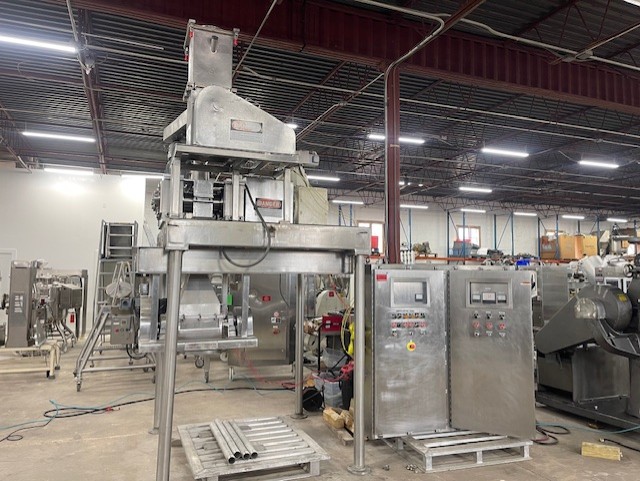

Fitzpatrick Model 4LX10D, 316 stainless steel roller compactor, Fitzmill Model DKASO12 knife rotor hammer mill stainless steel
| ProductName | : | Fitzpatrick Model 4LX10D, 316 stainless steel roller compactor, Fitzmill Model DKASO12 knife rotor hammer mill stainless steel |
| Item Number | : | P2009PIR1934 |

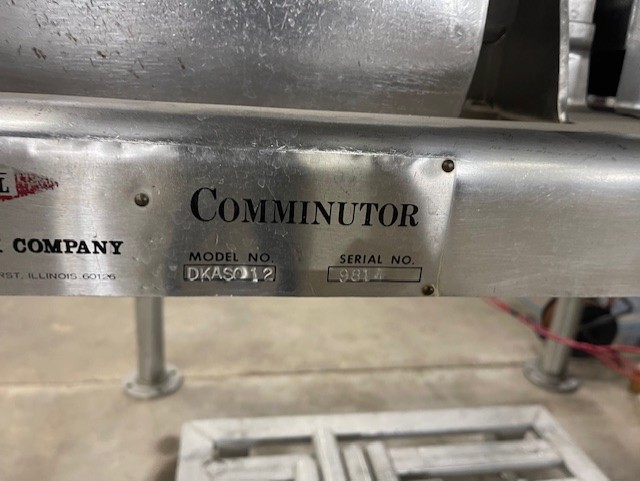

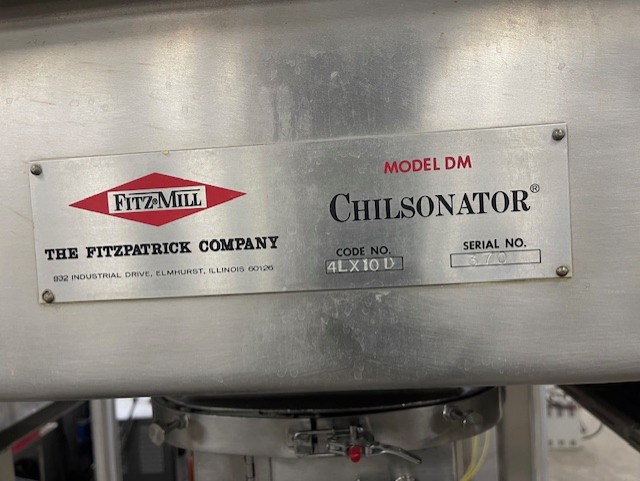

| Model | : | 4LX10D / Model DKASO12 |
| Serial Number | : | 370 / 9814 |
| Year | : |

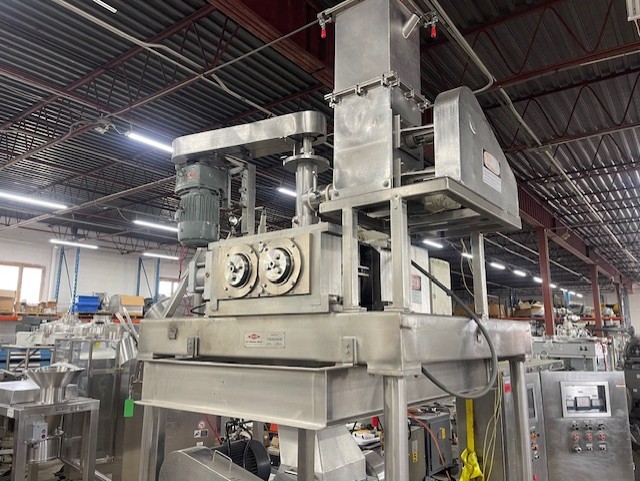

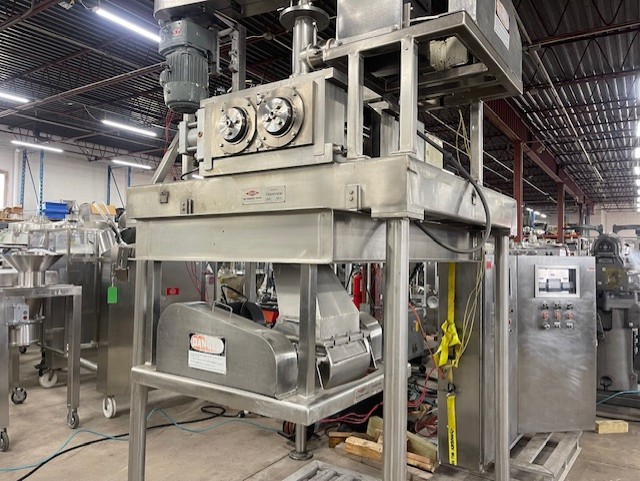

| Description | : | Fitzpatrick Model 4LX10D, 316 stainless steel, free standing roller compactor, chilsonator with onboard stainless steel Fitzmill Model DKASO12 knife rotor hammer mill and the system is rated from 250 – 400 kg of product per hour – depending on materials, application, machine configuration and environment being run in. Equipped with 4" OD horizontal metering screw with 1 Hp motor drive that eliminates vacuum dearation to 4 OD" vertical pre-compression screw with 5 Hp motor drive, that compresses product for more uniformity prior to feeding into the 4" OD x 10" long face cored product compaction rollers with 7.5 Hp motor drive and bulk densities of feed from 10 to 100 lbs per cubic foot and roll force of 17.5 KN/cm with roll gap range of 1mm to 6mm.horizontal screws, variable frequency speed controls with start and stop push buttons and e-stop. Mounted on (4) stainless steel leg |
