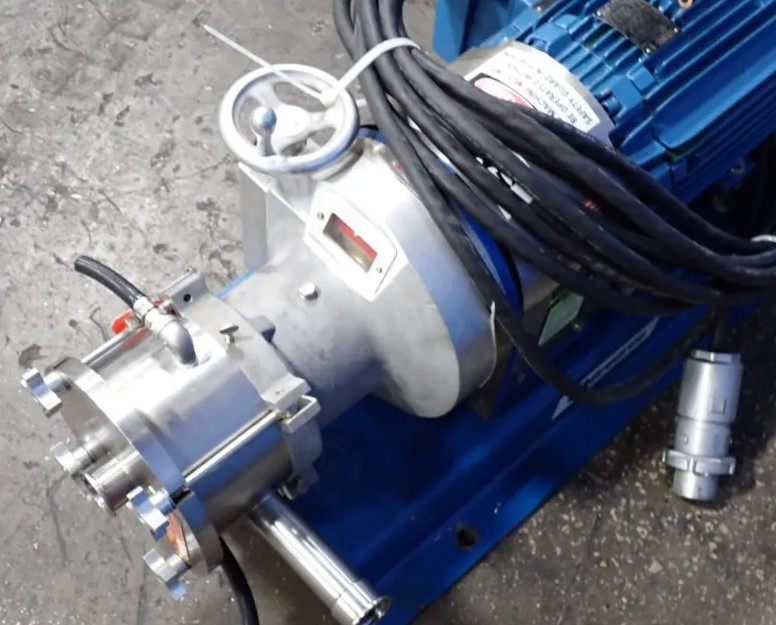

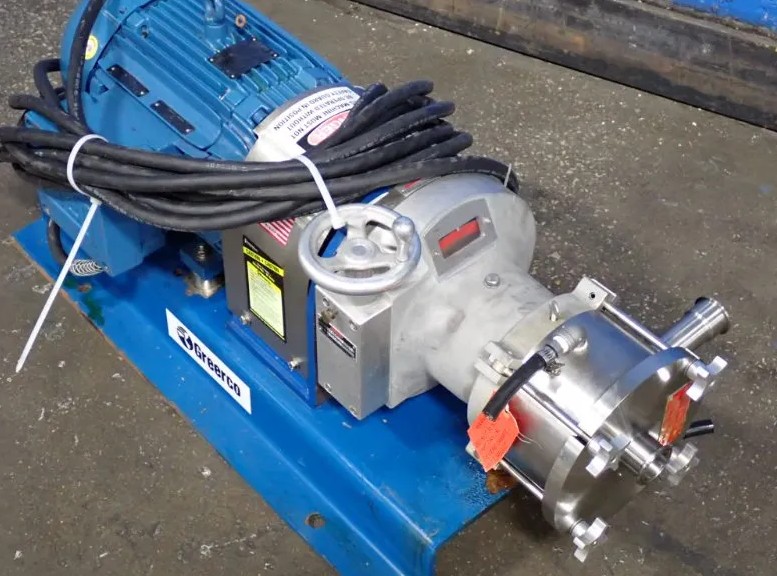

Greerco W500H-MS Stainless Horizontal Colloid Mill, 10HP
| ProductName | : | Greerco W500H-MS Stainless Horizontal Colloid Mill, 10HP |
| Item Number | : | P2009PIR1920 |

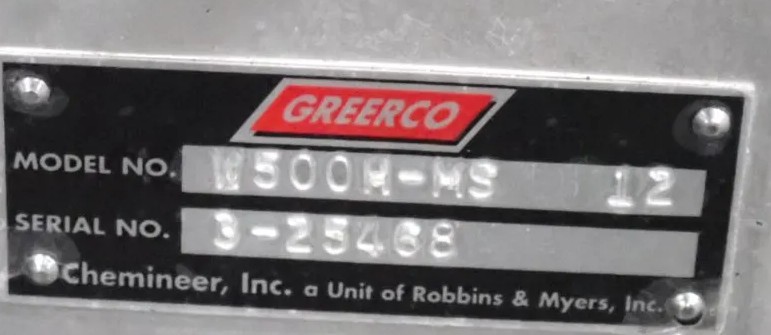

| Model | : | W500M-MS |
| Serial Number | : | 3-25468 |
| Year | : |

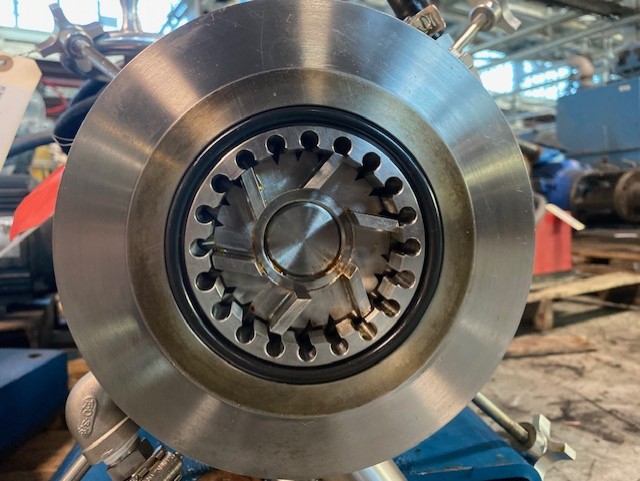

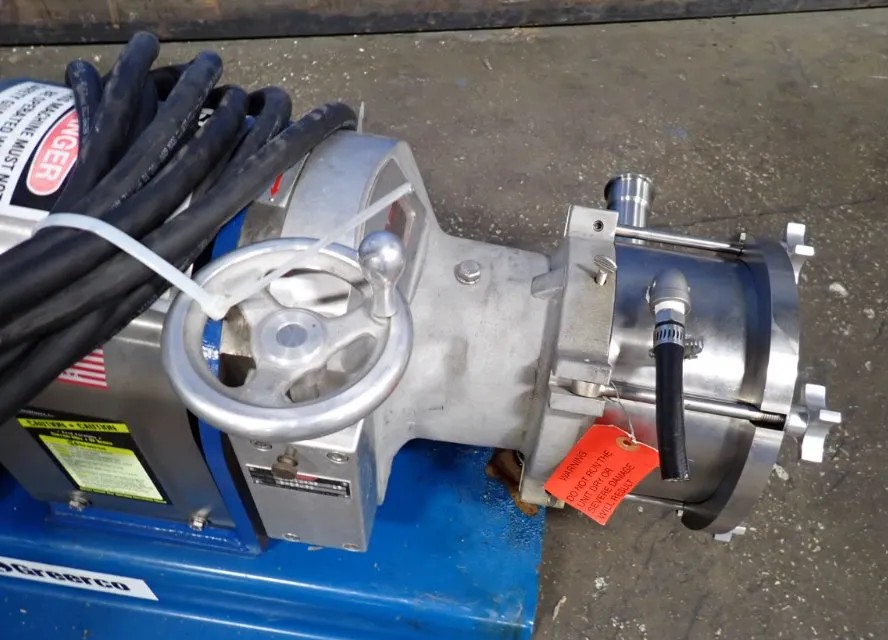

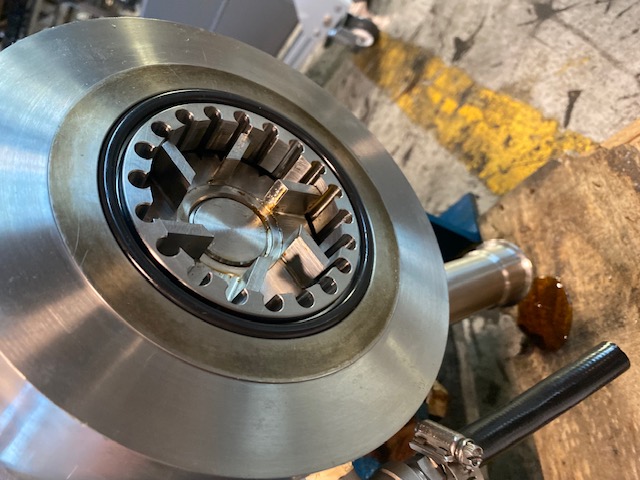

| Description | : | Greerco Model W500H Horizontial Colloid Mill. This unit features all 316 stainless steel sanitary contact surfaces designed to produce stable emulsions to the sub-micron range and disperse solids and or liquids into a carrying vehicle rapidly and uniformly, rotor turbine blades cut against fixed teeth in stator to permeate material before hydraulic shear zone of smooth rotor/stator with stellate surface, 5" diameter rotor with 77 ft/sec peripheral velocity, manually operated rotor/stator gap adjustment, 1 1/2"" inlet and outlet with tri clamp connections, directly coupled to 10 horsepower motor by Teco @ 3470 rpm, 230/460 volts, 3 phase, 24/12 amps, motor is UL rated for hazardous locations under class 1/group d, class ii/groups f & g, jacketed mill body for cooling, mounted on common base with casters. |
